Reference Architecture

All reference architectures aim at enabling an integration between a Company and the Complero system.

Main use case:
First, Company provides Contact data for analysis & updating by Complero.
Second, Complero provides updated Contact data.

Optional use case:
Company provides Employee data to be used for personalized Update-Requests.

Optional use case:
Complero provides documentation for advertisement Consents.

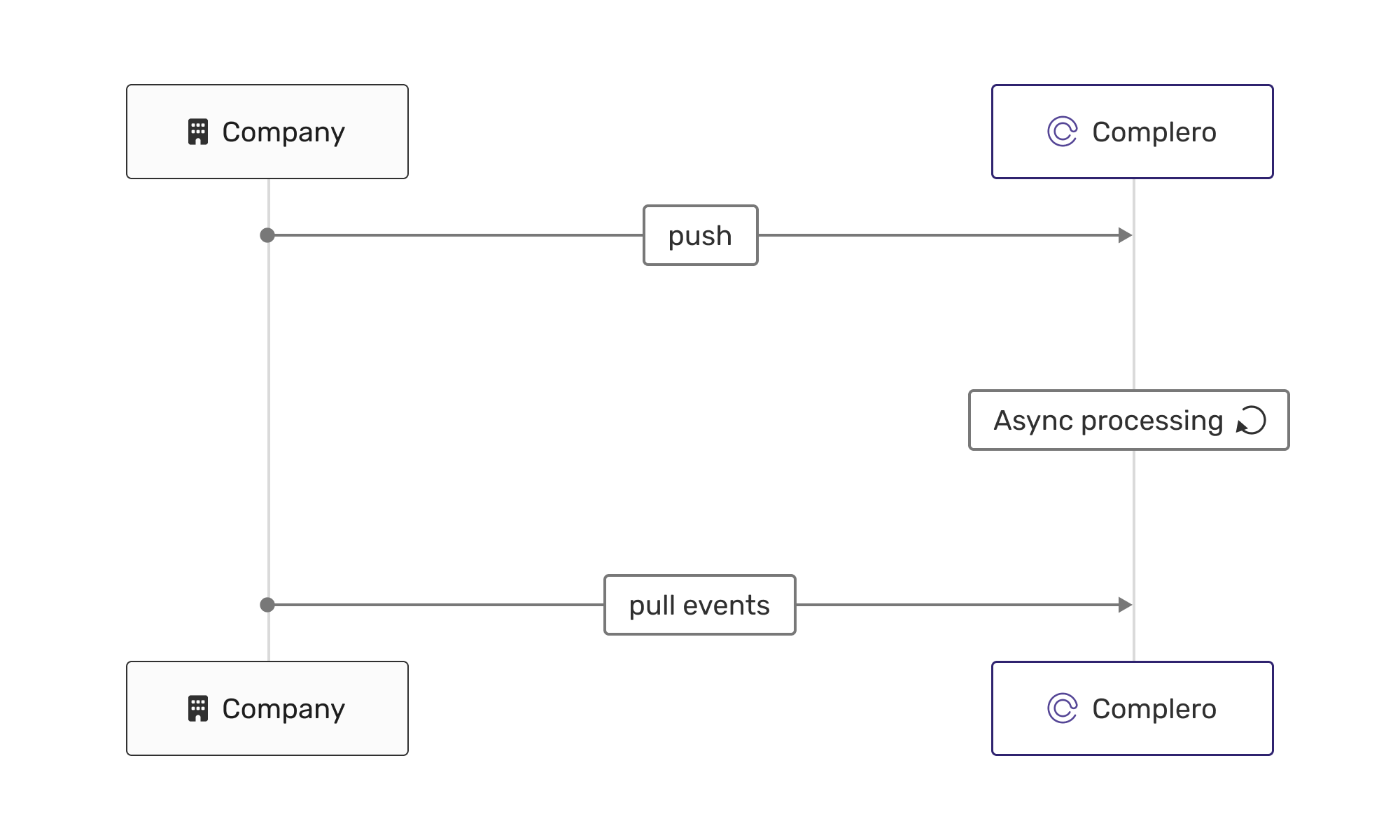

Reference Architecture: REST + Polling​

With this architecture the client does push all the data to Complero and regularly polls the API to receive any new data.

The advantage is clear:

  • Simple and well known API format (REST like / OpenAPI)
  • Client is controlling the process
  • No need to open ports or other access to the Customer network

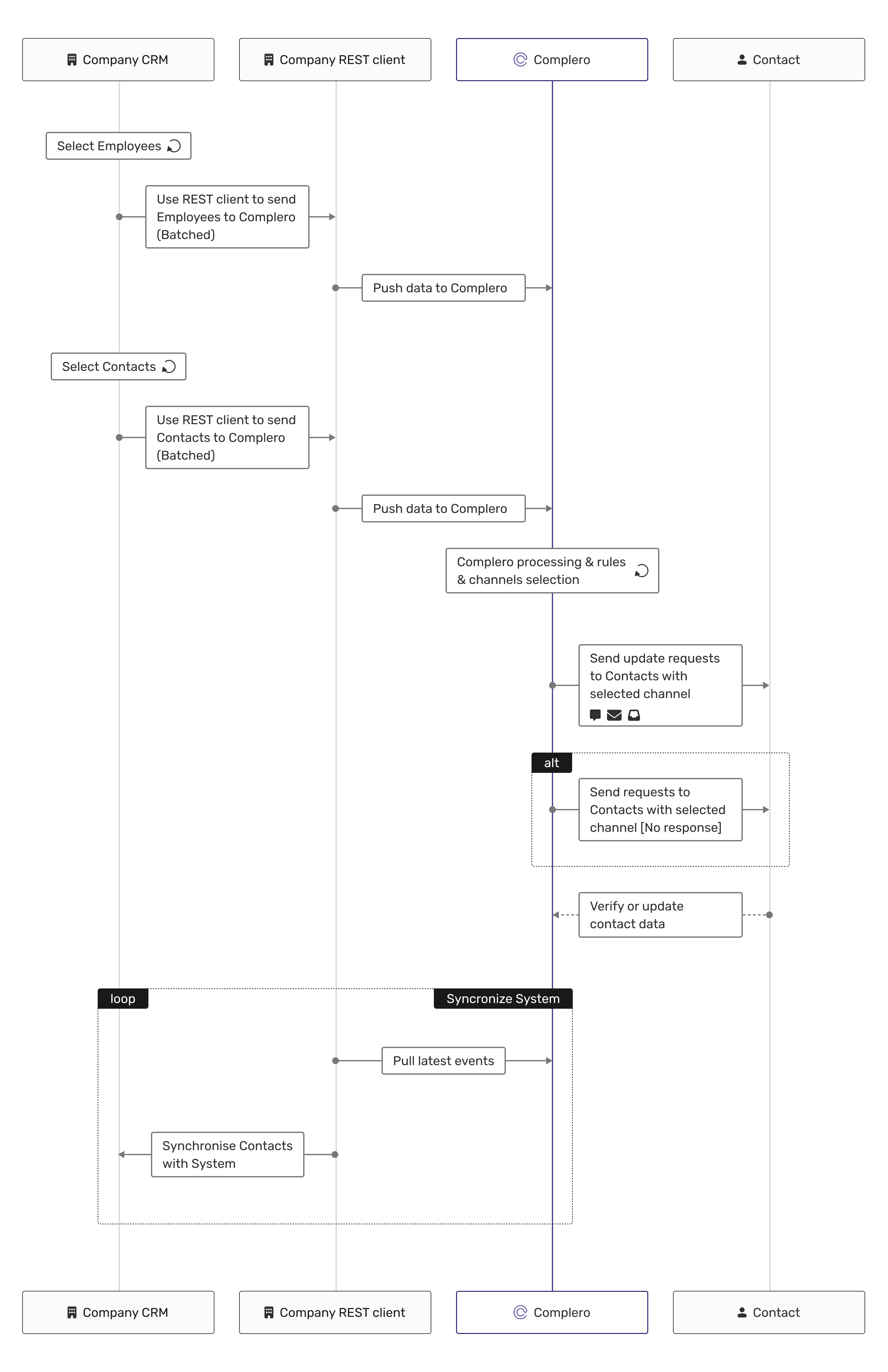

The following diagram shows an example on how it could look like when contact data is synchronised with a CRM system. The actual details might depend on the individual systems involved of each company.
